Housing, Removing And Installing: Removing

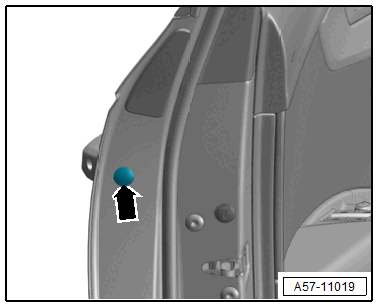

-- Remove the cap -arrow-.

GWWA57-11019Courtesy of AUDI OF AMERICA, LLC

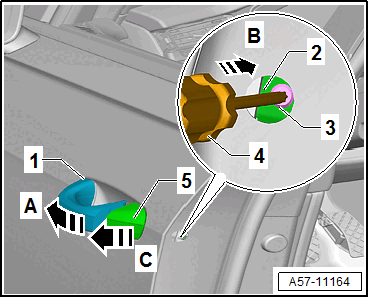

-- Remove the screw -3- until it stops using a screwdriver -4-.

GWWA57-11164Courtesy of AUDI OF AMERICA, LLC

-- Push the retaining bracket -2- for the housing inward until it engages in direction of -arrow B-.

-- Pull the door handle -1- all the way to the "open" position direction of -arrow A- and hold it.

-- Remove the housing with the cap -5- from the mounting bracket direction of -arrow C-.
