Overview - Front Door Window

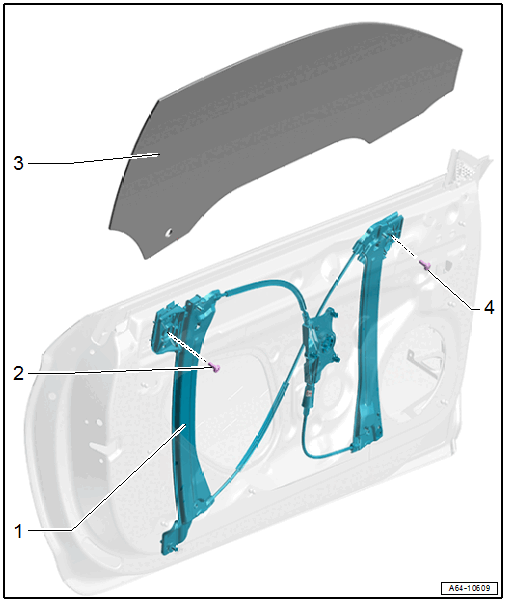

Fig 1: Front Door Window, A5 Overview

GWWA64-10609

Courtesy of AUDI OF AMERICA, LLC

Window Regulator
- Overview. Refer to OVERVIEW - WINDOW REGULATOR .
Bolt
- 8 Nm
Door Window
- Removing and installing. Refer to FRONT DOOR WINDOW, REMOVING AND INSTALLING .
- Adjusting. Refer to FRONT DOOR WINDOW, ADJUSTING .
Bolt
- 8 Nm
