Seam Seal, Removing And Installing: Removing

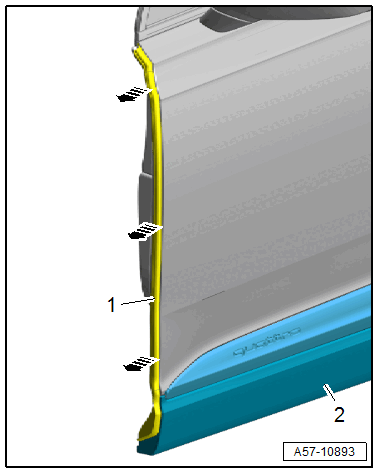

-- Loosen the lower seam seal -1- from the door cover -2-.

GWWA57-10893

Courtesy of AUDI OF AMERICA, LLC

-- Remove the seam seal in direction of -arrows-.
