Seam Seal, Removing And Installing: Installing

Install in reverse order of removal and note the following:

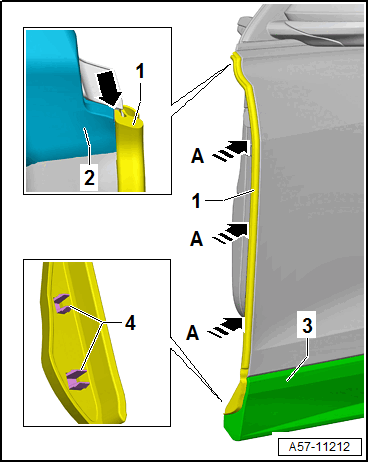

-- Align the seam seal -1- to the upper edge of the window shaft seal -2- -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Press the retainers -4- of the seam seal -1- in the door cover -3- until they click into place.

-- Press the seam seal on the door flange in direction of -A arrows-.
