Overview - Door Seals

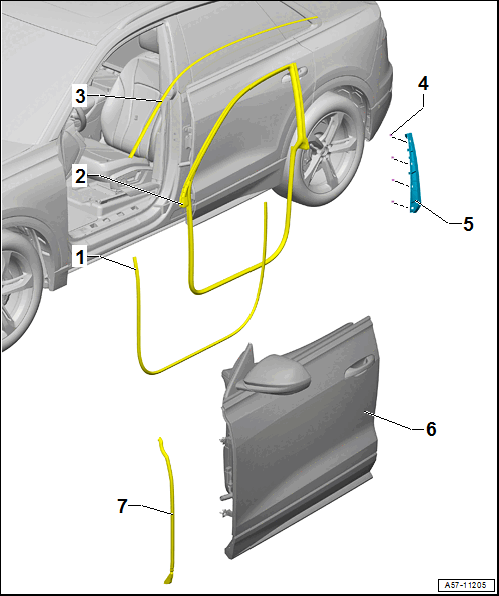

Fig 1: Exploded View Of Door Seals

Courtesy of AUDI OF AMERICA, LLC

Outer Door Seal
- Replace after removing.
- Removing and installing. Refer to OUTER DOOR SEAL, REMOVING AND INSTALLING .
Inner Door Seal
- Removing and installing. Refer to INNER DOOR SEAL, REMOVING AND INSTALLING .
Roof Trim Molding Door Seal
- Removing and installing. Refer to ROOF TRIM MOLDING DOOR SEAL, REMOVING AND INSTALLING .
Clip
- Quantity: 4
Bracket
- Replace after removing.
- For the inner door seal
- Removing and installing. Refer to INNER DOOR SEAL BRACKET, REMOVING AND INSTALLING .
Door
- Overview. Refer to OVERVIEW - DOOR .
Seam Seal
- Removing and installing. Refer to SEAM SEAL, REMOVING AND INSTALLING .
