Overview - Window Guides And Window Shaft Strips

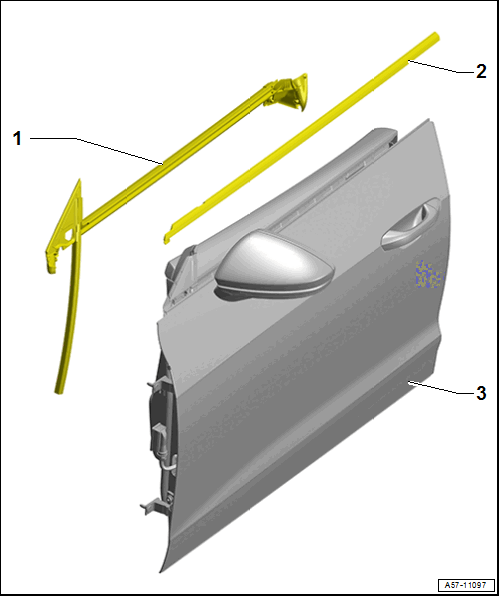

Fig 1: Exploded View Of Window Guides And Window Shaft Strips

Courtesy of AUDI OF AMERICA, LLC

1. Window Shaft Strip
   • Replace after removing.
   • Inner
   • Removing and installing. Refer to INNER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .
2. Window Shaft Strip
   • Outside
   • Removing and installing. Refer to OUTER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .
3. Door
