Inner Window Shaft Strip, Removing And Installing: Installing
- The vehicle and the window shaft strip must be at room temperature.
- The adhesive surfaces must be free of dirt and grease.
-- Use the : VAS6349 to remove any adhesive residue on the body.
-- Clean the painted side of the adhesive surface with Cleaning Solution: D 009 401 04 and let dry.
-- Remove the protective film from the adhesive tape.

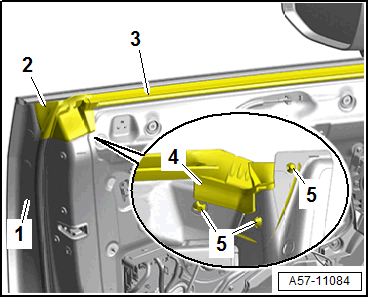

-- Align the sealing piece -2- onto the door -1- by engaging the guide -4- in the mounts on the door shell and pressing the retainers -5- all the way on.
-- Press the sealing piece -2- on all the way.
-- Press on the window shaft strip -3-.
-- Slide the window guide strip into the door window guide rail.
-- Press the bracket on completely.
- Vehicle resting time is at least 30 minutes at room temperature.
