Front Tunnel Brace, Removing And Installing: Removing

-- Remove the heat shield for the left and right front tunnel brace. Refer to HEAT SHIELD FOR FRONT TUNNEL BRACE, REMOVING AND INSTALLING .

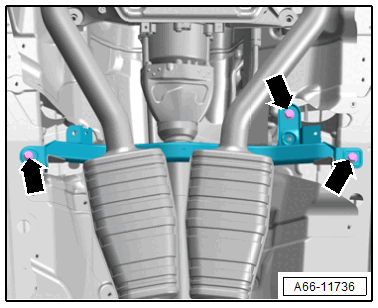

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the tunnel brace.
