Side Spoiler, Removing And Installing: Removing

-- Carefully warm the spoiler -1- using the : VAS1978/14A  .

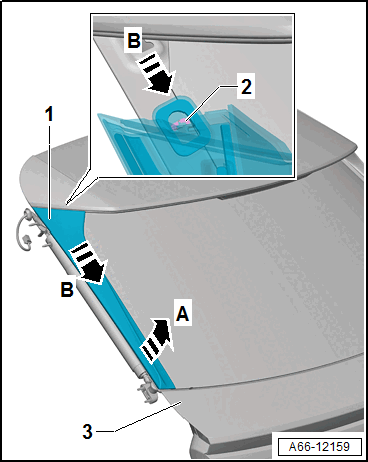

GWWA66-12159Courtesy of AUDI OF AMERICA, LLC

-- Carefully pry the lower section of the spoiler off of the rear lid -3- using the : T10383/1  in direction of -arrow A-.

-- Remove the centering pin -2- from the rear lid -3- in direction of -arrow B-.

-- Remove the spoiler -1-.
