Overview - Spoiler

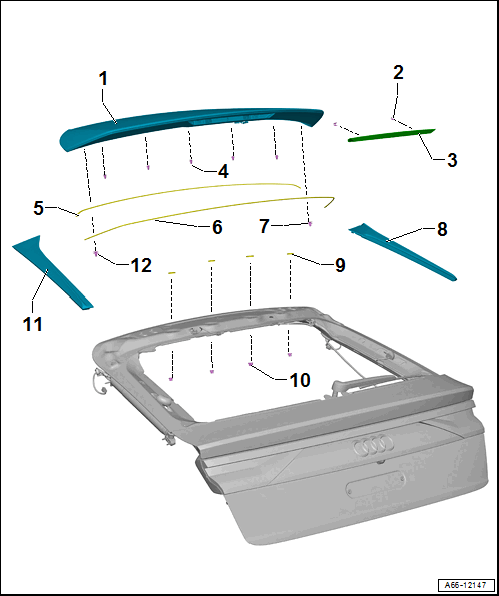

Fig 1: Exploded View Of Spoiler

Courtesy of AUDI OF AMERICA, LLC

Spoiler
- Removing and installing. Refer to SPOILER, REMOVING AND INSTALLING .
Clip
- For high-mounted brake lamp
High-Mounted Brake Lamp
- Overview. Refer to OVERVIEW - HIGH-MOUNTED BRAKE LAMP .
Clip
- Quantity: 5
Foam Seal
- Rear
Foam Seal
- Front
Clip
Spoiler
- Replace after removing.
- Right side
- Removing and installing. Refer to SIDE SPOILER, REMOVING AND INSTALLING .
Foam Seal
- Quantity: 4
Nut
- 6 Nm
- Quantity: 4
Spoiler
- Replace after removing.
- Left side
- Removing and installing. Refer to SIDE SPOILER, REMOVING AND INSTALLING .
Clip
