Roof Railing, Removing And Installing: Removing

CAUTION:

Pyrotechnical components can deploy unintentionally.

There is a risk of injury.

- Discharge static electricity by briefly touching the door striker.

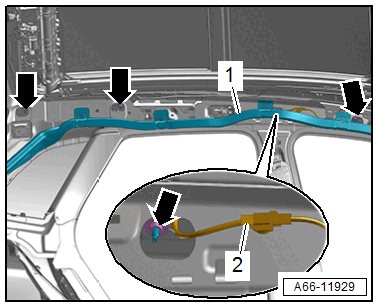

-- Remove the head curtain airbag with igniter -1- on the B-pillar from the body. The head curtain airbag remains installed. Refer to HEAD CURTAIN AIRBAG WITH IGNITER, REMOVING AND INSTALLING .

Courtesy of AUDI OF AMERICA, LLC

-- Release and disconnect the connector -2-.

-- Remove the nuts -arrows- using the : T40078 .

-- Remove the roof railing upward.
