Overview - Roof Railing

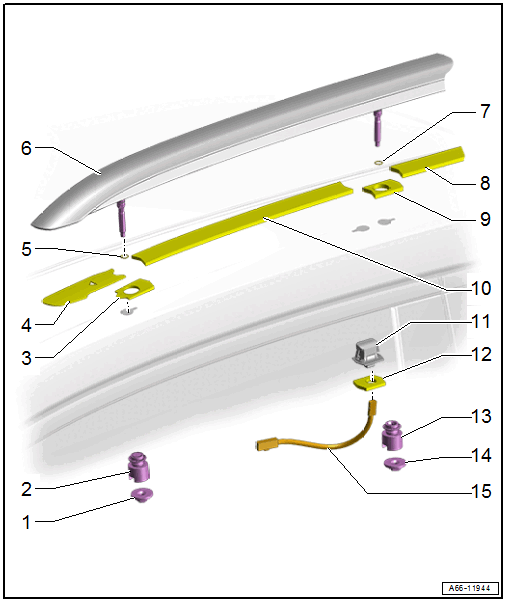

Fig 1: Exploded View Of Roof Railing

Courtesy of AUDI OF AMERICA, LLC

1. Nut
   • Tightening specification and sequence. Refer to Fig 2.
   • Insert with locking fluid. Refer to the Parts Information.
2. Lifter
   • 1 Nm
   • Removing and installing. Refer to LIFTER, REMOVING AND INSTALLING .
   • Insert with locking fluid. Refer to the Parts Information.
3. Seal
4. Seal
5. Seal
6. Roof Railing
   • Removing and installing. Refer to ROOF RAILING, REMOVING AND INSTALLING .
7. Seal
8. Seal
9. Seal
10. Seal
11. Roof Rack Recognition Sensor -G625-
    • Removing and installing. Refer to Roof Rack Recognition Sensor -G625-, REMOVING AND INSTALLING .
12. Seal
13. Lifter
    • 1 Nm
    • Removing and installing. Refer to LIFTER, REMOVING AND INSTALLING .
    • Insert with locking fluid. Refer to the Parts Information.
14. Nut
    • Tightening specification and sequence. Refer to Fig 2.
    • Insert with locking fluid. Refer to the Parts Information.
15. Wire

Roof Railing - Tightening Specification and Sequence

Fig 2: Roof Railing - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the nuts to 10 Nm in the sequence -2, 3, 4, 1-.
