Center End Panel, Removing And Installing
-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- If equipped, remove the night vision system camera and free up the washer fluid hose. Refer to NIGHT VISION SYSTEM CAMERA -R212-, REMOVING AND INSTALLING .
-- If equipped, remove the spray nozzles for the Laser Distance Regulation Control Module -J1122-. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
-- If equipped, free up the wires on the center end panel.

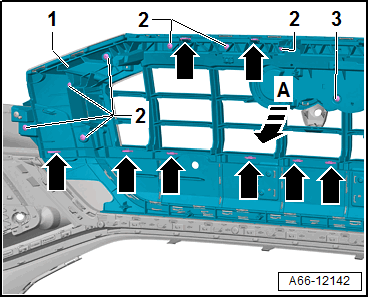

-- Remove the bolts -2-.
-- Remove the bolt -3-, if equipped.
-- Release the catches -arrows-.
-- Remove the center end panel -1- -arrow A-.
Installing
Install in reverse order of removal.
Tightening Specifications
- Refer to OVERVIEW - RADIATOR GRILLE
