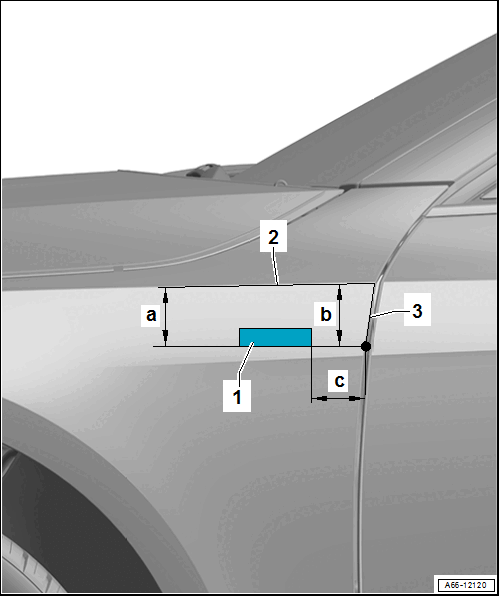

Dimensions - Side Name Badges And Emblems

Courtesy of AUDI OF AMERICA, LLC

1. Type/Emblem
   • S-line
     • Dimension -a- = 77 mm
     • Dimension -b- = 77 mm
     • Dimension -c- = 20 mm
2. Cover Edge on Fender
3. Rear Edge on Fender
