Sill Panel Trim, Removing And Installing: Installing
Install in reverse order of removal and note the following:
- The vehicle and the trim must be at room temperature.
- The adhesive surfaces must be free of dirt and grease.
-- Remove adhesive residue from the body.
-- Clean the painted side of the adhesive surface with Cleaning Solution: D 009 401 04 and let dry.

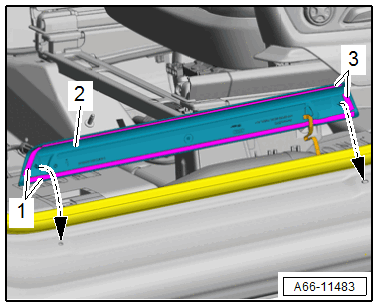

-- Remove the protective film from the adhesive tape -1 and 3-.
-- Position the sill panel trim -2- over the pins on the side sill in direction of -arrows-.
-- Push the sill panel trim onto the side sill using the : 3356 .
- Vehicle resting time is at least 30 minutes at room temperature.
Further installation is the reverse order of removal.
