B-Pillar Trim, Removing And Installing: Installing

Install in reverse order of removal and note the following:

-- Mount the B-pillar trim -1- on the B-pillar and push it upward. The guide -2- must fit into the mount -3-.

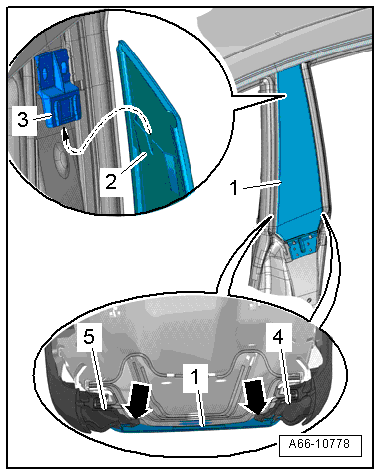

Fig 1: Installing B-Pillar Trim

Courtesy of AUDI OF AMERICA, LLC

• When positioning and pushing upward, the recess -arrows- on the B-pillar trim must include the door seal on the left -5- and right -4-.

-- Press on the B-pillar trim.
