Upper Front Tunnel Heat Shield, Removing And Installing: Removing

-- Remove the heat shield for the lower plenum chamber bulkhead. Refer to LOWER PLENUM CHAMBER BULKHEAD HEAT SHIELD, REMOVING AND INSTALLING .

-- Remove the heat shield for the front tunnel. Refer to HEAT SHIELD FOR FRONT TUNNEL, REMOVING AND INSTALLING .

-- If equipped, remove the slip catalyst. Refer to OVERVIEW - EMISSIONS CONTROL SYSTEM .

-- Place the : T10337 on the : VAS6931 and position it at the bottom of the transmission.

Courtesy of AUDI OF AMERICA, LLC

TIP:

For reasons of clarity, the : T10337 is not shown.

-- Remove the tunnel crossmember bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Lower the engine/transmission assembly to dimension -a- using the : VAS6931 .

Fig 1: Engine And Gearbox Jack VAS 6931

Courtesy of AUDI OF AMERICA, LLC

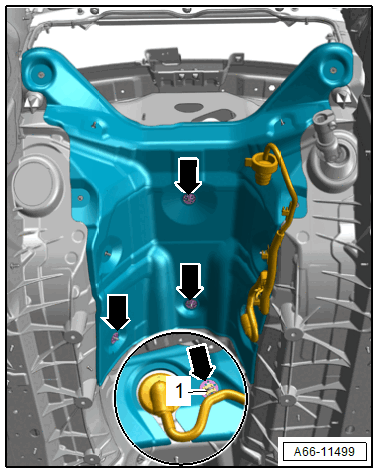

-- Remove the lock washers -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wiring harness -1- on the left side of the vehicle.

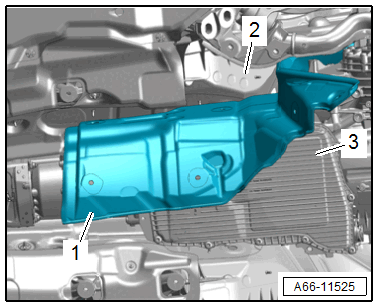

-- Remove the heat shield -1- to the lower right between the transmission -3- and body -2-.
