Lower Plenum Chamber Bulkhead Heat Shield, Removing And Installing: Removing

-- Remove the subframe crossbrace. Refer to SUBFRAME CROSSBRACE, REMOVING AND INSTALLING .

-- Remove the front muffler/front exhaust pipe. Refer to FRONT MUFFLER, REMOVING AND INSTALLING .

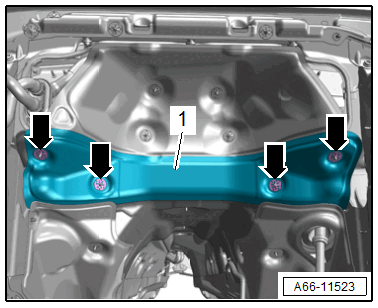

-- Remove the lock washers -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the heat shield -1- downward to the right.
