Heat Shield For Front Tunnel, Removing And Installing: Removing

-- Remove the rear heat shield for the longitudinal member. Refer to REAR LONGITUDINAL MEMBER HEAT SHIELD, REMOVING AND INSTALLING .

Right:

-- If equipped, remove the slip catalyst. Refer to OVERVIEW - EMISSIONS CONTROL SYSTEM .

Continuation:

-- Place the : T10337 on the : VAS6931 and position it at the bottom of the transmission.

Courtesy of AUDI OF AMERICA, LLC

-- If equipped, remove the bolts -arrows- and guide the mounting for the front muffler to the side.

Fig 1: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

TIP:

Courtesy of AUDI OF AMERICA, LLC

For reasons of clarity, the : T10337 is not shown.

-- Remove the tunnel crossmember bolts -arrows-.

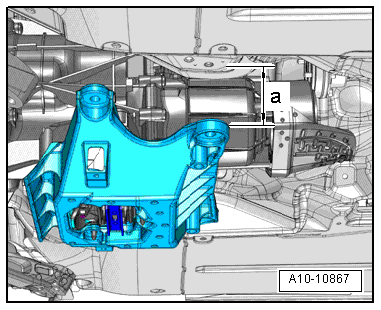

-- Lower the engine/transmission assembly to dimension -a- using the : VAS6931 .

Fig 2: Engine And Gearbox Jack VAS 6931

Courtesy of AUDI OF AMERICA, LLC

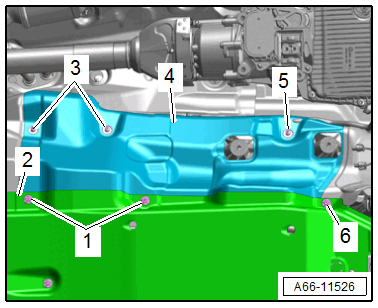

-- Remove the nuts -1 and 6- for the underbody trim panel -2- in the heat shield area.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -3 and 5-.

-- Free up the heat shield -4- near the stud bolts.

-- Remove the heat shield.
