Heat Shield For Front Tunnel Brace, Removing And Installing: Removing

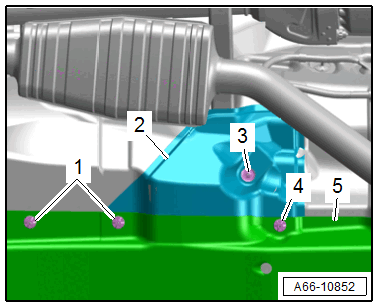

-- Remove the nuts -1 and 4- for the underbody trim panel -5- in the area of the heat shield.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the clip -3-.

-- Remove the heat shield -2-.
