Driveshaft Heat Shield, Removing And Installing: Removing

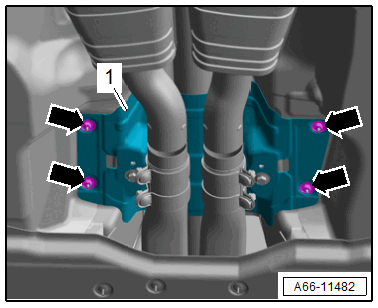

-- Remove the nuts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the exhaust system clamping sleeves. Refer to OVERVIEW - MUFFLER and OVERVIEW - EMISSIONS CONTROL SYSTEM .

-- Remove the heat shield -1- toward the front.
