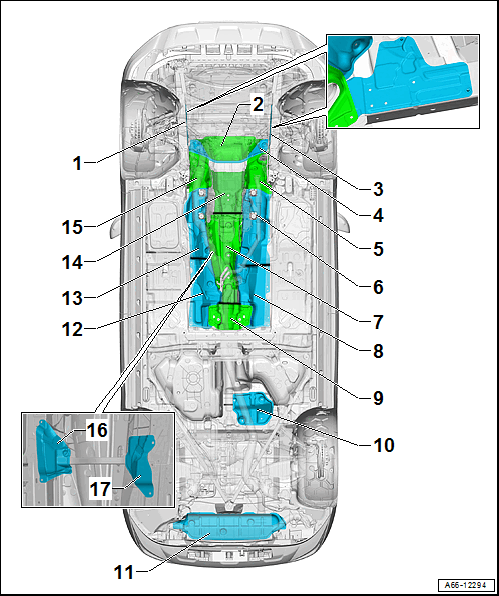

Component Location Overview - Heat Shield

Courtesy of AUDI OF AMERICA, LLC

1. Heat Shield
   • For right front longitudinal member
   • Removing and Installing. Refer to FRONT LONGITUDINAL MEMBER HEAT SHIELD, REMOVING AND INSTALLING .
   • Tightening Specifications:
     • Spring nuts: 2.5 Nm
     • Nuts: 5 Nm
2. Heat Shield
   • For the plenum chamber bulkhead
   • Removing and Installing. Refer to PLENUM CHAMBER BULKHEAD HEAT SHIELD, REMOVING AND INSTALLING .
3. Heat Shield
   • For left front longitudinal member
   • Removing and Installing. Refer to FRONT LONGITUDINAL MEMBER HEAT SHIELD, REMOVING AND INSTALLING .
   • Tightening Specifications:
     • Spring nuts: 2.5 Nm
     • Nuts: 5 Nm
4. Heat Shield
   • For the lower plenum chamber bulkhead
   • Removing and Installing. Refer to LOWER PLENUM CHAMBER BULKHEAD HEAT SHIELD, REMOVING AND INSTALLING .
5. Heat Shield
   • For the rear longitudinal member
   • Removing and Installing. Refer to REAR LONGITUDINAL MEMBER HEAT SHIELD, REMOVING AND INSTALLING .
   • Left
   • Tightening Specifications:
     • Spring nuts: 2.5 Nm
6. Heat Shield
   • For the front of the tunnel
   • Left
   • Removing and Installing. Refer to HEAT SHIELD FOR FRONT TUNNEL, REMOVING AND INSTALLING .
   • Tightening specification:
     • Spring nuts: 2.5 Nm
7. Heat Shield
   • For the transmission tunnel
   • Removing and Installing. Refer to TRANSMISSION TUNNEL HEAT SHIELD, REMOVING AND INSTALLING .
8. Heat Shield
   • For the tunnel rear
   • Left
   • Removing and Installing. Refer to HEAT SHIELD FOR REAR TUNNEL, REMOVING AND INSTALLING .
   • Tightening specification:
     • Spring nuts: 2.5 Nm
9. Heat Shield
   • For the driveshaft
   • Tightening specification:
     • Spring nuts: 2.5 Nm
   • Removing and Installing. Refer to DRIVESHAFT HEAT SHIELD, REMOVING AND INSTALLING .
10. Heat Shield
    • For the center of the exhaust system
    • Removing and Installing. Refer to CENTER EXHAUST SYSTEM HEAT SHIELD, REMOVING AND INSTALLING .
    • Tightening specification:
      • Spring nuts: 2.5 Nm
11. Heat Shield
    • For the rear muffler
    • Removing and Installing. Refer to REAR MUFFLER HEAT SHIELD, REMOVING AND INSTALLING .
    • Tightening specification:
      • Spring nuts: 2.5 Nm
12. Heat Shield
    • For the tunnel rear
    • Right
    • Removing and Installing. Refer to HEAT SHIELD FOR REAR TUNNEL, REMOVING AND INSTALLING .
    • Tightening specification:
      • Spring nuts: 2.5 Nm
13. Heat Shield
    • For the front of the tunnel
    • Right
    • Removing and Installing. Refer to HEAT SHIELD FOR FRONT TUNNEL, REMOVING AND INSTALLING .
    • Tightening specification:
      • Spring nuts: 2.5 Nm
14. Heat Shield
    • For the top of the front tunnel
    • Removing and Installing. Refer to UPPER FRONT TUNNEL HEAT SHIELD, REMOVING AND INSTALLING .
15. Heat Shield
    • For the rear longitudinal member
    • Right
    • Removing and Installing. Refer to REAR LONGITUDINAL MEMBER HEAT SHIELD, REMOVING AND INSTALLING .
    • Tightening specification:
      • Spring nuts: 2.5 Nm
16. Heat Shield
    • For left front tunnel brace
    • Removing and Installing. Refer to HEAT SHIELD FOR FRONT TUNNEL BRACE, REMOVING AND INSTALLING .
17. Heat Shield
    • For right front tunnel brace
    • Removing and Installing. Refer to HEAT SHIELD FOR FRONT TUNNEL BRACE, REMOVING AND INSTALLING .
