Center Exhaust System Heat Shield, Removing And Installing: Removing

-- Vehicles with gasoline engine: remove the center muffler. Refer to OVERVIEW - MUFFLER .

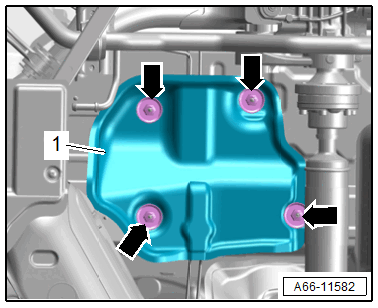

-- Remove the nuts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the heat shield -1- past the exhaust system to the left.
