Wind Deflector, Removing And Installing: Removing

-- Position the glass panel so that it is tilted all the way.

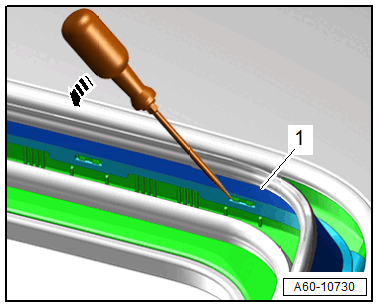

-- Disengage the net -1- from the wind deflector starting at the side from the frame for the sliding sunroof in direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

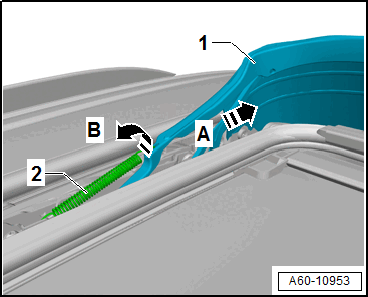

-- Tilt the spring -2- out of the wind deflector -1- in direction of -arrow B-.

Courtesy of AUDI OF AMERICA, LLC

-- Slide the wind deflector -1- out of the guide rail in direction of -arrow A-.
