Sunroof Shade, Removing And Installing: Installing

Install in reverse order of removal and note the following:

-- Check the left and right positions of the cable.

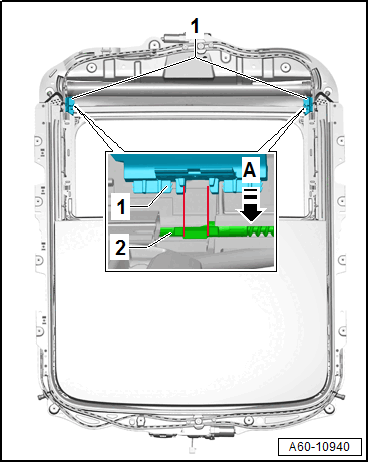

-- When inserting the sunroof shade in direction of -arrow A-, make sure the positioning is correct between the gliding piece -1- and the left and right sunroof shade cables -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Perform an adaptation. Refer to Sunroof Shade Motor -V260-, ADAPTING .
