Glass Panel, Removing And Installing, Front: Removing

CAUTION:

Moving the slotted guide rail guide increases the risk of damaging the sliding sunroof components.

- Move the slotted guide rail guide only when the glass panel is installed.

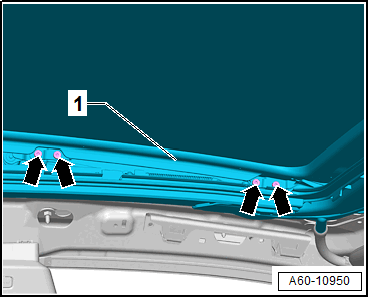

-- Open the glass panel -1- just until the bolts -arrows- are accessible.

GWWA60-10950Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and remove the front glass panel -1-.
