Screen Separator Mount Cover, Removing And Installing: Removing

-- Fold the backrest forward.

-- Release the locking tabs with the :80-200  -arrows-.

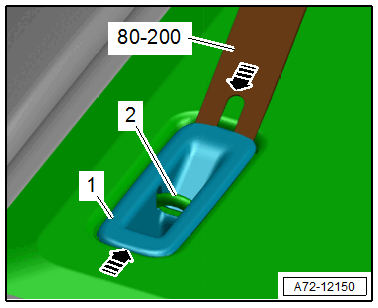

GWWA72-12150Courtesy of AUDI OF AMERICA, LLC

-- Pry out the cover -1- upward from the backrest.

-- Carefully pull and remove the cover from the anchor -2-.
