Center Seat Frame Trim Panel, Removing And Installing: Removing
-- Remove the rear bench seat cover and cushion. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR BENCH SEAT .
-- If possible, position the 2/3 rear seat as far forward as possible using the forward/back adjustment.

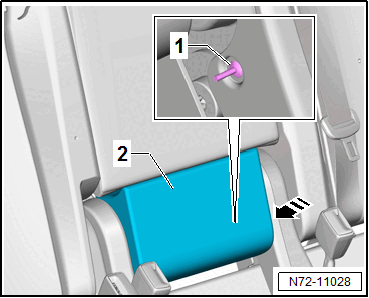

-- Remove the center cushion -2-. Refer to CENTER CUSHION, REMOVING AND INSTALLING, BACKREST WITH PASS-THROUGH .
-- Remove the expanding rivet -1-.

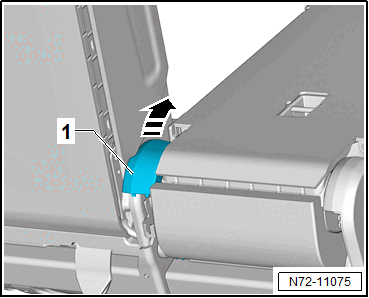

-- Loosen the trim panel -1- with the Trim Removal Wedge :3409 and remove direction of -arrow A-.
-- Release the rear seat backrest and fold it forward.

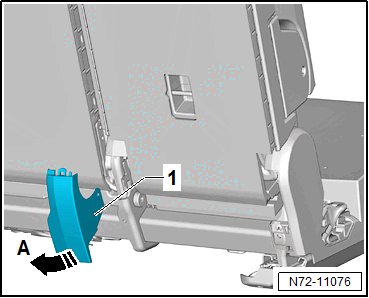

-- Remove the trim panel -1- upward from the seat frame direction of -arrow A-.
