Rear Seat Backrest Locking Mechanism, Removing And Installing: Removing

-- Remove the locking mechanism trim. Refer to LOCKING MECHANISM TRIM, REMOVING AND INSTALLING .

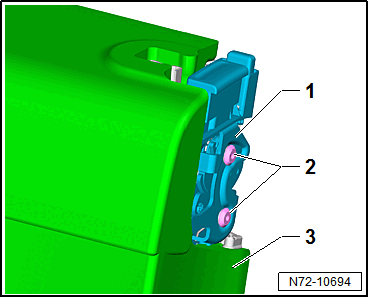

-- Remove the bolts -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the locking mechanism -1- from the pass-through frame -3-.
