CUPHOLDER, Removing And Installing: Removing

-- Fold the center armrest up.

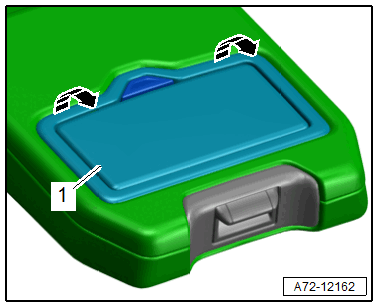

-- Pry out the cupholder at the rear edge using the :80-200 -arrows-.

GWWA72-12162

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cupholder.
