Tunnel-Side Seat Frame Trim Panel, Removing And Installing: Removing

-- Unscrew the front seat and tip forward with the wires attached. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Release the backrest cover tension bands -arrow- at the bottom of the seat pan.

Courtesy of AUDI OF AMERICA, LLC

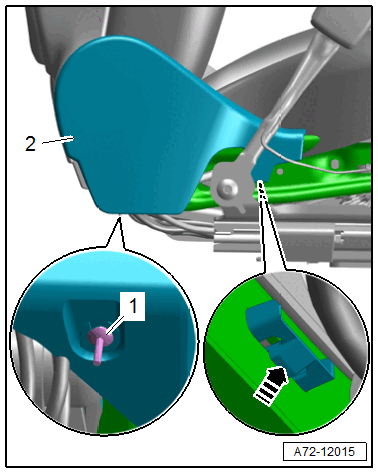

-- Remove the expanding rivet -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Press down the tab -arrow- at the inside of the seat rail.

-- Remove the seat frame trim panel on the tunnel-side -2-.
