Seat Depth Adjuster, Removing And Installing: Removing

-- Move seat depth adjuster forward.

-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Secure the front seat to the :VAS6136  . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .

-- Remove the seat frame trim panel/control module/compressor bracket. Refer to.SEAT FRAME TRIM PANEL/CONTROL MODULE/COMPRESSOR BRACKET, REMOVING AND INSTALLING

-- Disengage the left and right rubber bands -2- at the seat depth adjuster and secure from sliding back using a cable tie, for example.

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the molding -1- for the cover on the seat depth adjuster.

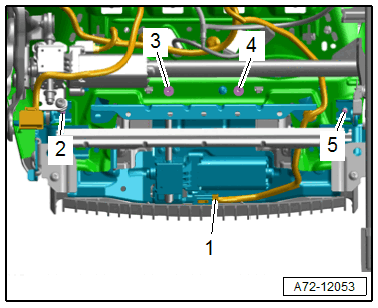

-- Release and disconnect the connector -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wiring harness.

-- Remove the bolts -2 to 5-.

-- Release the tabs -2 and 3- and remove the seat cushion retaining plate together with the cover and seat cushion.

Courtesy of AUDI OF AMERICA, LLC

-- Push the cover and seat cushion back or lift up.

-- Disengage and remove the seat depth adjuster from the attachments -1 and 4-.
