Front Seat Frame Trim Panel, Removing And Installing: Removing

-- Move the front seat as far back as it will go.

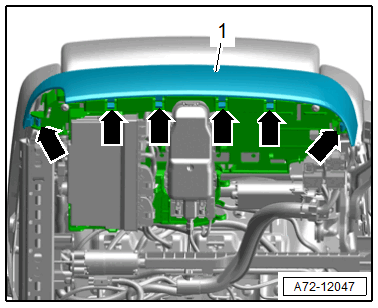

-- Release the hooks -arrows-, and remove the front seat frame trim panel -1- upward.

GWWA72-12047Courtesy of AUDI OF AMERICA, LLC
