Fire Extinguisher Bracket, Removing And Installing: Removing

-- Move the front seat all the way to the rear in its highest position.

-- Remove the fire extinguisher from the bracket.

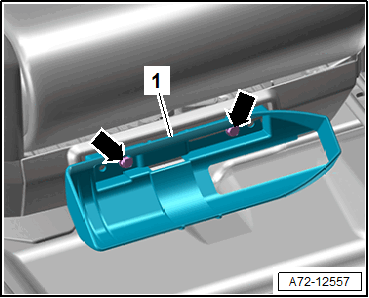

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the fire extinguisher bracket -1-.

Vehicles without seat depth adjuster:

Courtesy of AUDI OF AMERICA, LLC

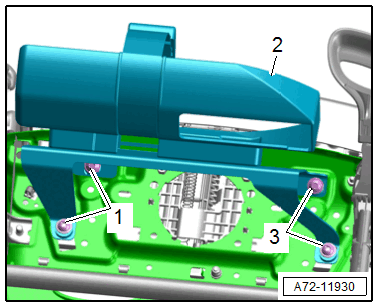

-- Remove the bolts -1 and 3-.

-- Remove the fire extinguisher bracket -2-.
