Seat Angle Adjuster, Removing And Installing: Removing

-- Move the front seat into its highest position.

-- Unscrew the front seat and tip to the rear with the wires attached. Refer to FRONT SEAT, REMOVING AND INSTALLING .

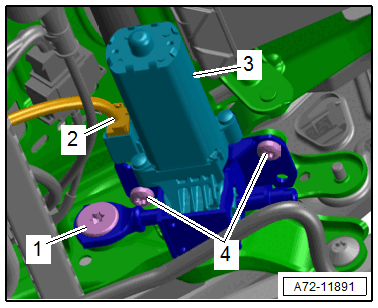

-- Remove the bolt -1- for the seat angle adjustment motor adjusting spindle.

Courtesy of AUDI OF AMERICA, LLC

-- Release and disconnect the connector -2- from the seat angle adjustment motor.

-- Remove the bolts -4-.

-- Remove the seat angle adjustment motor -3-.
