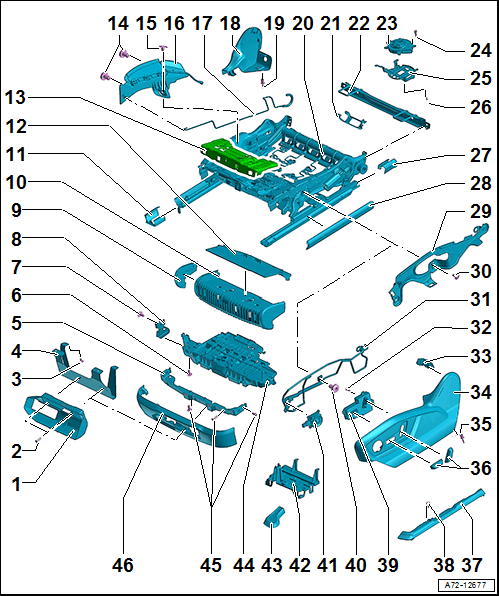

Overview - Seat Pan

Overview - Seat Bolster Inflation Adjuster. Refer to OVERVIEW - SEAT BOLSTER INFLATION ADJUSTER .

Courtesy of AUDI OF AMERICA, LLC

Mount
- For the fire extinguisher
- Equipment version: front passenger seat only
- Removing and Installing. Refer to FIRE EXTINGUISHER BRACKET, REMOVING AND INSTALLING .
Screw
- Quantity: 2
- 8 Nm
Screw
- Quantity: 4
- 7.5 Nm
Bracket
- For the fire extinguisher
- Seats without seat depth adjuster
- Equipment version: front passenger seat only
- Removing and Installing. Refer to FIRE EXTINGUISHER BRACKET, REMOVING AND INSTALLING .
Bracket
- For the fire extinguisher
- Seats with seat depth adjuster
- Equipment version: front passenger seat only
- Removing and Installing. Refer to FIRE EXTINGUISHER BRACKET, REMOVING AND INSTALLING .
Screw
- Quantity: 2
- 3.5 Nm
Screw
- 3.5 Nm
Retaining Bracket
- Quantity: 2
Trim
- For the seat depth adjustment
- Quantity: 2
- pull off forward
Seat Depth Adjuster Support
- Removing and Installing. Refer to SEAT DEPTH ADJUSTER SUPPORT, REMOVING AND INSTALLING .
Cover
- Front for seat rail
- Quantity: 2
- Removing and Installing. Refer to FRONT AND REAR SEAT RAIL COVER, REMOVING AND INSTALLING .
Cover
- For the seat depth adjustment
- Clip into the seat depth adjuster support
Seat Depth Adjuster
- Removing and Installing. Refer to SEAT DEPTH ADJUSTER, REMOVING AND INSTALLING .
Screw
- Quantity: 2
- 2.5 Nm
Expanding Clip
Bracket
- for seat bolster inflation adjuster
- Quantity: 2
- With air cushion for seat bolster inflation adjuster
- Removing and Installing. Refer to SEAT BOLSTER INFLATION ADJUSTER AIR CUSHION, REMOVING AND INSTALLING .
Upholstery Wire
- For the seat pan
- Quantity: 2
Seat Frame Trim Panel
- Tunnel-side
- Removing and Installing. Refer to TUNNEL-SIDE SEAT FRAME TRIM PANEL, REMOVING AND INSTALLING .
Expanding Clip
Seat Pan
- Disassembling and assembling. Refer to SEAT PAN, DISASSEMBLING AND ASSEMBLING .
Bracket
- For the footwell lamp
- Clip into the seat frame
Child Seat Anchor
- Equipment version: front passenger seat only
- Replace damaged or deformed child seat anchor
- Overview. Refer to OVERVIEW - FRONT CHILD SEAT ANCHORS .
Seat Cushion Fan
- Driver Seat Cushion Blower Fan -V390-, Front Passenger Seat Cushion Blower Fan - V391-
- Removing and Installing. Refer to FRONT SEAT FAN, REMOVING AND INSTALLING, SEAT CUSHION .
Rubber Bracket
- for blower fan
- Quantity: 4
- Insert in the seat pan
Protective Cap
- For blower fan
- Removing and Installing. Refer to FRONT SEAT FAN, REMOVING AND INSTALLING, SEAT CUSHION .
Pop Rivet
- Quantity: 2
Cover
- Rear for seat rail
- Quantity: 2
- Removing and Installing. Refer to FRONT AND REAR SEAT RAIL COVER, REMOVING AND INSTALLING .
Cover
- Lower center side for seat rail
- Removing and Installing. Refer to LOWER CENTER SEAT RAIL COVER, REMOVING AND INSTALLING .
Bracket
- For the seat frame trim panel
- Seats with manual seat adjustment
- Removing and Installing. Refer to SEAT FRAME TRIM PANEL ON SIDE SILL SIDE, REMOVING AND INSTALLING .
Screw
- Quantity: 3
- 7.5 Nm
Bracket
- For the seat frame trim panel
- Seats with power seat adjustment
- Removing and Installing. Refer to SEAT FRAME TRIM PANEL ON SIDE SILL SIDE, REMOVING AND INSTALLING .
Screw
- Quantity: 5
- 1 Nm
Bracket
- Clip into the seat frame trim panel
Seat Frame Trim Panel
- Side Sill Side
- Removing and Installing. Refer to SEAT FRAME TRIM PANEL ON SIDE SILL SIDE, REMOVING AND INSTALLING .
Expanding Clip
Actuator
- For power seat adjustment
- Removing and Installing. Refer to DRIVER/FRONT PASSENGER SEAT ADJUSTMENT CONTROL HEAD -E470- / -E471-, REMOVING AND INSTALLING .
Cover
- Upper center side for seat rail
- Removing and Installing. Refer to UPPER CENTER SEAT RAIL COVER, REMOVING AND INSTALLING .
Expanding Clip
Seat Adjustment Control Head
- For power seat adjustment
- Driver Seat Adjustment Control Head -E470-, Front Passenger Seat Adjustment Control Head - E471-
- Removing and Installing. Refer to DRIVER/FRONT PASSENGER SEAT ADJUSTMENT CONTROL HEAD -E470- / -E471-, REMOVING AND INSTALLING .
Screw
- Quantity: 3
- 7.5 Nm
Switch/Switch Module for Front Seat
- Equipped on some models: for power seat adjustment, vehicles without massage function
- Driver Seat Lumbar Support Adjustment Switch - E176-, Front Passenger Seat Lumbar Support Adjustment Switch - E177-
- Equipped on some models: for power seat adjustment, vehicles with massage function
- Driver Seat Switch Module -E663-, Front Passenger Seat Switch Module - E664-
- Removing and Installing. Refer to FRONT SEAT SWITCH/SWITCH MODULE, REMOVING AND INSTALLING .
Bracket
- For the control module
- Equipped on some models: for power adjustable standard seat
- Removing and Installing. Refer to SEAT FRAME TRIM PANEL/CONTROL MODULE/COMPRESSOR BRACKET, REMOVING AND INSTALLING .
Seat Forward/Back Adjustment Handle
- Overview. Refer to OVERVIEW - SEAT BOLSTER INFLATION ADJUSTER .
Bracket
- For Seat frame trim panel/control module/compressor
- Removing and Installing. Refer to SEAT FRAME TRIM PANEL/CONTROL MODULE/COMPRESSOR BRACKET, REMOVING AND INSTALLING .
Screw
- Quantity: 9
- 6.5 Nm
Seat Frame Trim Panel
- Front
- Removing and Installing. Refer to FRONT SEAT FRAME TRIM PANEL, REMOVING AND INSTALLING .
