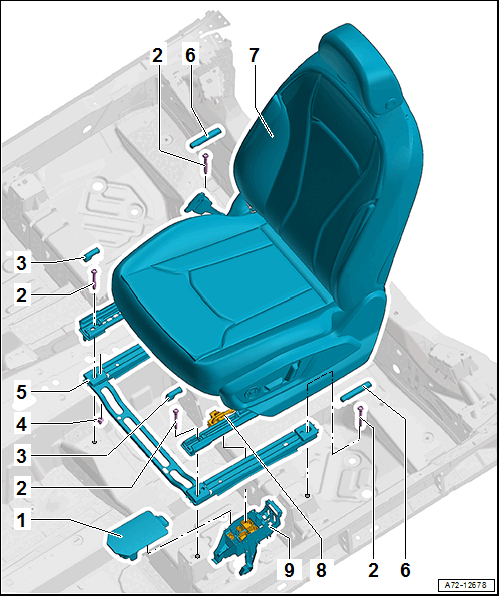

Overview - Front Seat

Courtesy of AUDI OF AMERICA, LLC

Cover
- For the connector station
Screw
- Quantity: 4
- 50 Nm
Front Spindle Cover
- Clip into the cover
- Quantity: 2
- Removing and Installing. Refer to FRONT AND REAR SEAT RAIL COVER, REMOVING AND INSTALLING .
Clip
- Quantity: 2
Front Seat Mount
- Under the carpet
- Clipped in the vehicle floor
Spindle Rear Cover
- Clip into the cover
- Quantity: 2
- Removing and Installing. Refer to FRONT AND REAR SEAT RAIL COVER, REMOVING AND INSTALLING .
Front Seat
- Removing and Installing. Refer to FRONT SEAT, REMOVING AND INSTALLING .
Connector
- With a corrugated tube for the modular wiring routing
- Modular Wiring Routing, Disconnecting and Connecting. Refer to MODULAR WIRING ROUTING, DISCONNECTING AND CONNECTING .
Connector Station
- Connector assignment. Refer to the appropriate Wiring Diagram.
