Multimedia System Display Unit Bracket: Removing

-- Remove the backrest seat cover and cushion. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING .

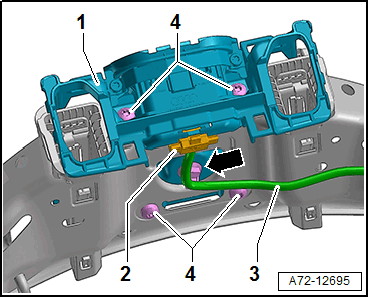

-- Release and disconnect the connector -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the wiring harness -3- on the multimedia system display unit bracket -1- -arrow-.

-- Remove the bolts -4-.

-- Remove the multimedia system display unit bracket -1-.
