Headrest, Removing And Installing, Headrest With Height Adjuster: Removing

-- Equipped on some models: remove the multimedia system display unit. Refer to the approrpriate service information .

-- Position the backrest toward the rear at an angle.

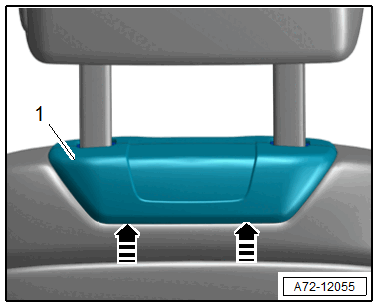

-- Grab the rear cover -1- at the lower edge and slide upward out of the locking mechanism -arrows-.

GWWA72-12055Courtesy of AUDI OF AMERICA, LLC

-- Move the headrest all the way up.

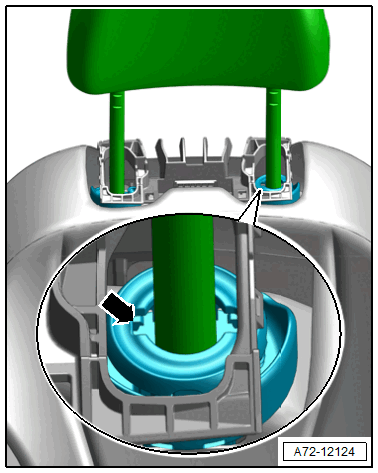

-- Press down the release ring -arrow- on the left headrest guide and pull the headrest upward at the same time.

GWWA72-12124Courtesy of AUDI OF AMERICA, LLC
