Headrest Guide, Removing And Installing, Headrest With Height And Angle Adjuster: Removing

-- Remove the backrest seat cover and cushion. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING .

Vehicles with Rear Seat Entertainment System:

Courtesy of AUDI OF AMERICA, LLC

-- Release and disconnect the connector -2-.

-- Unclip the wiring harness -3- on the multimedia system display unit bracket -1- -arrow-.

-- Remove the bolts -4-.

-- Remove the multimedia system display unit bracket -1-.

Vehicles without Rear Seat Entertainment System:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the screws -A arrows-.

-- Release the tab -arrow B- and remove the cover -1-.

Continuation:

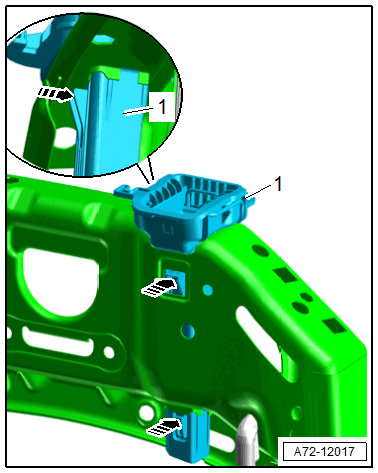

-- Press the tabs down at the same time -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the headrest guide -1- upward.
