Front Seat Fan, Removing And Installing, Seat Cushion: Removing
-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- Secure the front seat to the :VAS6136 . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .
CAUTION:
Risk of injury due to flying metal shavings.
Irritation and injury to skin and eyes possible.
- Wear protective eyewear.
- Wear safety gloves.
-- Drill out the pop rivets -arrows- or separate them using the mini-grinder.
-- Remove the protective cap -1- for the fan.

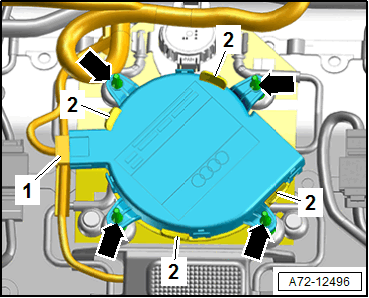

-- Disengage the tabs -2- on the rubber boot from the seat cushion fan.
-- Spray the rubber bracket -arrows- of the elastic fan mount with silicone-free lubricating spray. Remove the fan from the rubber brackets.
-- Release and disconnect the connector -1-.
-- Remove the fan.
