Front Seat Fan, Removing And Installing, Seat Backrest: Removing

-- Remove the backrest cover. Refer to BACKREST COVER, REMOVING AND INSTALLING .

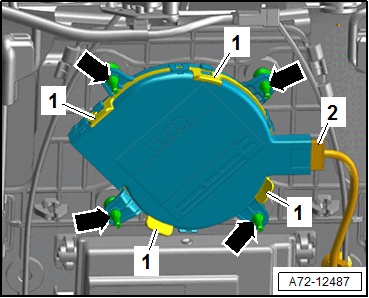

-- Disengage the tabs -1- on the rubber boot from the seat backrest fan.

Courtesy of AUDI OF AMERICA, LLC

-- Spray the rubber bracket -arrows- of the elastic fan mount with silicone-free lubricating spray. Remove the fan from the rubber brackets.

-- Release and disconnect the connector -2-.

-- Remove the fan.
