Backrest Cover, Removing And Installing, Standard/Sport.Comfort Seat: Removing

-- Remove the headrest. Refer to HEADREST, REMOVING AND INSTALLING .

-- Move the front seat all the way forward and up.

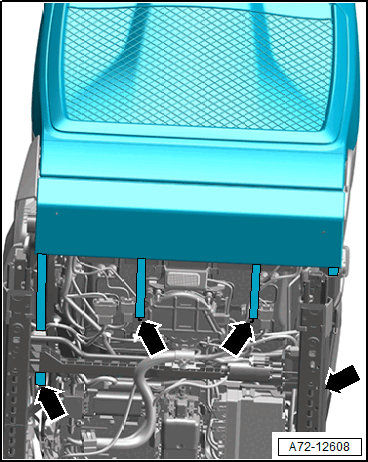

-- Disengage the tensions traps -arrows- on the bottom of the seat pan.

GWWA72-12608Courtesy of AUDI OF AMERICA, LLC

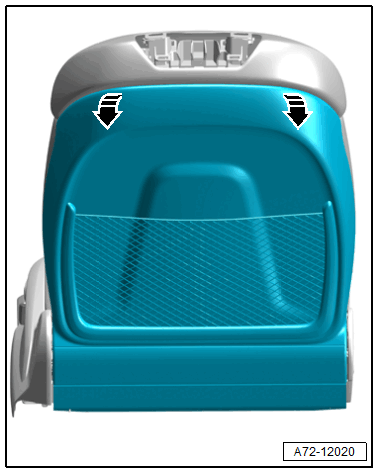

-- Grab the backrest cover at the upper edge and pull toward the rear out of the retainer -arrows-.

GWWA72-12020Courtesy of AUDI OF AMERICA, LLC

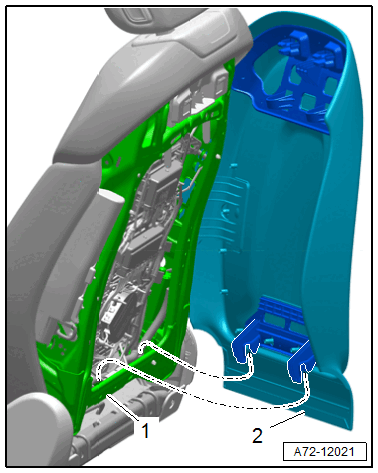

-- Disengage the lower backrest cover hooks -2- from the backrest -1- and remove the backrest cover.

GWWA72-12021Courtesy of AUDI OF AMERICA, LLC
