Pneumatic System Compressor, Removing And Installing: Removing

-- Switch off the ignition.

-- Unscrew the front seat and tip to the rear with the wires attached. Refer to FRONT SEAT, REMOVING AND INSTALLING .

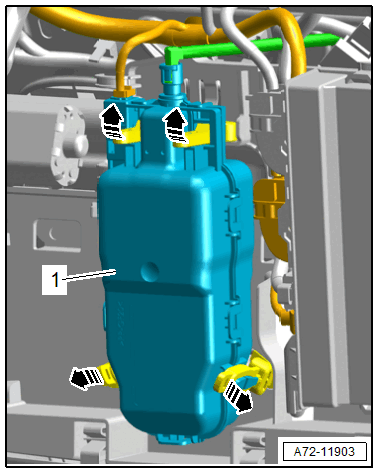

-- Remove the rubber fastener from the brackets on the compressor -1- -arrows-.

Courtesy of AUDI OF AMERICA, LLC

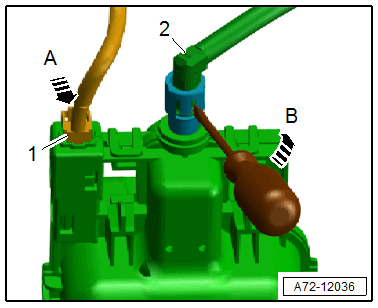

-- Press the safety catch -arrow A- to disconnect the connector -1-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the pneumatic line -2- by lifting the safety catch slightly with a small flat-head screwdriver -arrow B-.
