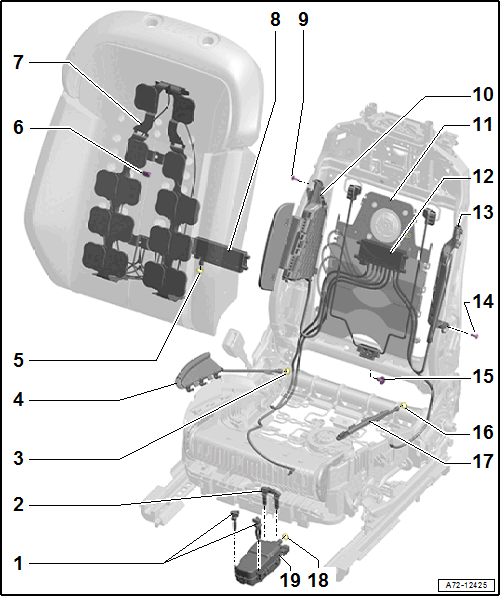

Overview - Pneumatic System
- Connection Diagram - Pneumatic System. Refer to CONNECTION DIAGRAM - PNEUMATIC SYSTEM .
- Rubber Bracket
- For the supercharger
- Quantity: 2
- Rubber Bracket
- For the supercharger
- O-Ring
- Replace after removing.
- Air Cushion
- for seat bolster inflation adjuster
- Only available together with the bracket -item 16-
- Removing and Installing. Refer to SEAT BOLSTER INFLATION ADJUSTER AIR CUSHION, REMOVING AND INSTALLING .
- O-Ring
- Replace after removing.
- Clip
- For securing the massage mat
- Quantity: 2
- Replace after removing.
- Massage Mat
- Removing and Installing. Refer to MASSAGE MAT, REMOVING AND INSTALLING .
- Valve Block 1
- For massage function
- Valve Block 1 in Driver Seat - N475-, Valve Block 1 in Front Passenger Seat - N477-
- Removing and Installing. Refer to MASSAGE FUNCTION VALVE BLOCK, REMOVING AND INSTALLING .
- Screw
- 2.5 Nm
- Air Cushion
- For the backrest bolster adjuster
- Available only with -item 11-
- Removing and Installing. Refer to LUMBAR SUPPORT WITH AIR CUSHIONS, REMOVING AND INSTALLING, MODULE WITH VALVE BLOCK 2 AND BACKREST BOLSTER ADJUSTERS .
- Lumbar Support
- Module with air cushions, valve block 2, and backrest bolster adjuster
- Removing and Installing. Refer to LUMBAR SUPPORT WITH AIR CUSHIONS, REMOVING AND INSTALLING, MODULE WITH VALVE BLOCK 2 AND BACKREST BOLSTER ADJUSTERS .
- Valve Block 2
- for lumbar support and bolster adjuster
- Valve Block 2 in Driver Seat - N476-, Valve Block 2 in Front Passenger Seat - N478-
- Available only with -item 11-
- Removing and Installing. Refer to LUMBAR SUPPORT WITH AIR CUSHIONS, REMOVING AND INSTALLING, MODULE WITH VALVE BLOCK 2 AND BACKREST BOLSTER ADJUSTERS .
- Air Cushion
- For the backrest bolster adjuster
- Available only with -item 11-
- Removing and Installing. Refer to LUMBAR SUPPORT WITH AIR CUSHIONS, REMOVING AND INSTALLING, MODULE WITH VALVE BLOCK 2 AND BACKREST BOLSTER ADJUSTERS .
- Screw
- 2.5 Nm
- Screw
- 3.5 Nm
- O-Ring
- Replace after removing.
- Air Cushion
- for seat bolster inflation adjuster
- Only available together with the bracket -item 16-
- Removing and Installing. Refer to SEAT BOLSTER INFLATION ADJUSTER AIR CUSHION, REMOVING AND INSTALLING .
- O-Ring
- Replace after removing.
- Pneumatic System Compressor
- Driver Multi-Contour Seat Compressor - V439-, Front Passenger Multi-Contour Seat Compressor - V440-
- Removing and Installing. Refer to PNEUMATIC SYSTEM COMPRESSOR, REMOVING AND INSTALLING .
