Massage Mat, Removing And Installing: Removing

-- Disconnect the backrest cover and cushion. Refer to BACKREST COVER AND CUSHION, SEPARATING .

-- If necessary, loosen the bottom of the heating element -1- from the adhesive in the area of the center cushion.

Courtesy of AUDI OF AMERICA, LLC

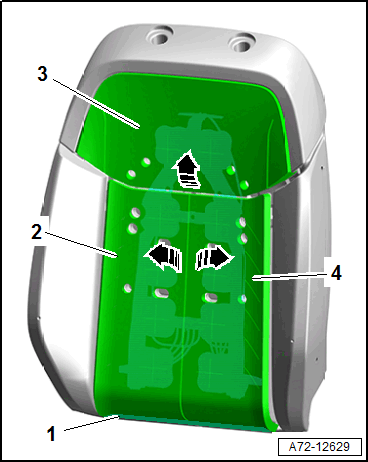

-- Fold back or lift up the foam pieces -2, 3, and 4- with heating element -arrows-. Loosen from the adhesive if necessary.

Super Sport Seat:

Courtesy of AUDI OF AMERICA, LLC

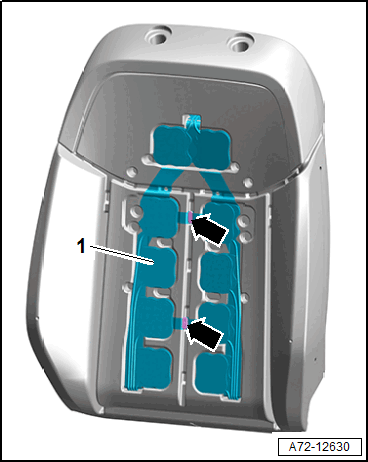

-- Remove the clips -arrows-.

-- Thread the pneumatic lines and pneumatic connector at the top and bottom of the cushion.

-- Remove the massage mat -1-.

Comfort Seat:

Courtesy of AUDI OF AMERICA, LLC

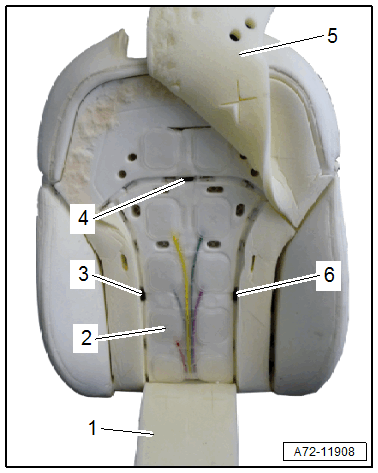

-- Fold back or lift up the foam sheets -1 and 5-. Loosen them from the bonding if necessary.

-- Remove the clips -3, 4 and 6-.

-- Remove the massage mat -2-.
