Massage Function Valve Block, Removing And Installing: Removing
- The backrest cover is removed. Refer to BACKREST COVER, REMOVING AND INSTALLING .

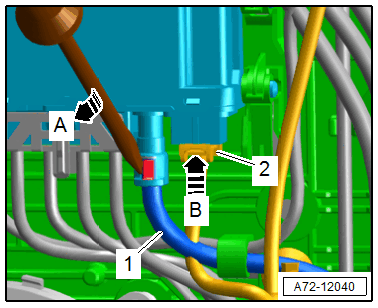

-- Disconnect the connector -2- at the massage function valve block by pressing the securing tab -arrow B-.
-- Remove the pneumatic line -1- by lifting the safety catch slightly with a small flat-head screwdriver -arrow A-.

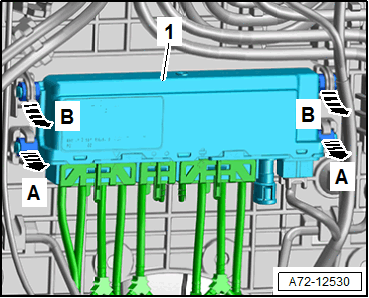

-- Unclip the massage function valve block -1- from the module carrier -A arrows-.
-- Disengage the massage function valve block downward from the module carrier -B arrows-.

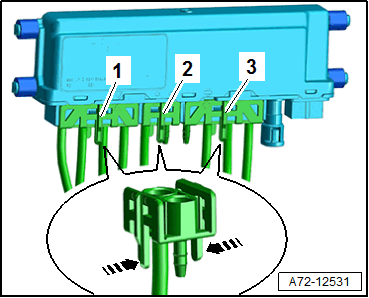

-- Disconnect the pneumatic connectors -1, 2, and 3- from the massage function valve block by pressing the release buttons -arrows-.
-- Remove the massage function valve block.
