Lock Carrier Trim Panel, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the luggage compartment floor. Refer to LUGGAGE COMPARTMENT FLOOR, REMOVING AND INSTALLING .

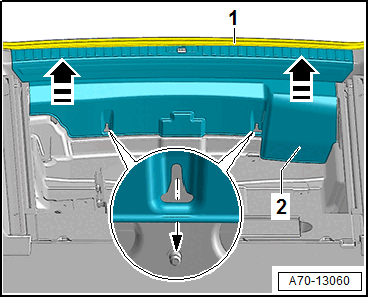

-- Free up the lock carrier trim panel -2- near the rear lid seal -1-.

-- Grip the trim panel -2- by hand and carefully pull vertically upward using a jerking motion in the direction of the -arrow-.
