Front Passenger Side Instrument Panel Vent, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the instrument cluster trim. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .

-- Remove the lower instrument panel decorative trim on the front passenger side. Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING, LOWER FRONT PASSENGER SIDE .

-- If equipped, remove the Air Ionization System Control Module -J897-. Refer to AIR IONIZATION SYSTEM CONTROL MODULE -J897-, REMOVING AND INSTALLING .

TIP:

-- Take pictures of the wires to ensure correct installation.

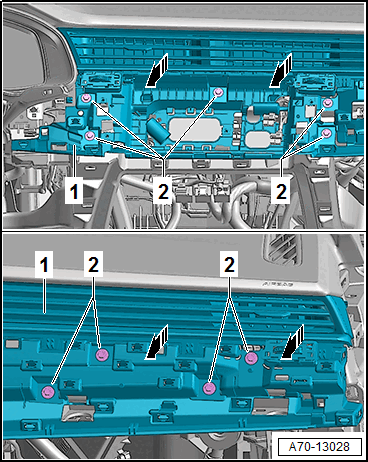

-- Remove the bolts -2-.

-- Unclip the instrument panel vent -1- in the direction of the -arrow-.

-- Carefully remove the instrument panel vent while releasing and disconnecting the connectors.
