Light Switch Trim, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the instrument panel side cover. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .

-- Remove the instrument panel side decorative trim. Refer to INSTRUMENT PANEL SIDE DECORATIVE TRIM, REMOVING AND INSTALLING .

-- Position the steering wheel as far back and down as possible.

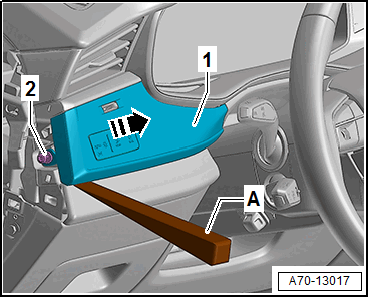

-- Release and remove the expanding rivet -2-.

-- Unclip the light switch trim -1- with the scraper -A- and remove in the direction of the -arrow-.

-- Release and disconnect the connectors.
